APPROVALS :
| Enclosure of Transmitter | Flameproof (FLP) / Explosion Proof (Exd) |
|---|---|
| MOC of Transmitter | Aluminium Die Cast |
| Type of Ingress Protection | IP66 as per IS/IEC 60529:2001 (Reaffirmed 2014) |
| Size | 131 × 145 × 184 mm (Approx.) |
| Weight | 1.9 Kg (Approx.) |
| Electrical Connection | M20 × 3 |
| Mounting | Canopy / Pipe Mount |
Sensor Specifications

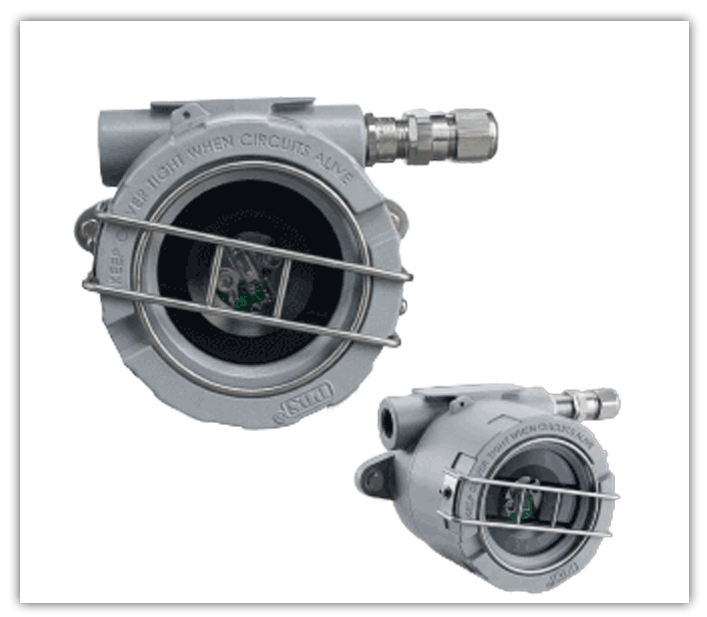

| Model | ARCIS-I25 Series and ARCIS-U25 Series |
|---|---|
| Detection Object |
Combustion of hydrocarbons and non-carbonaceous substances (Such as gasoline, alcohol, natural gas, hydrogen, etc.) |
| Detection Principle |
ARCIS-I25 / ARCIS-3I25: Multi-beam IR sensing with temporal and spectral analysis to validate flame. ARCIS-U25 Series: Dual-spectrum fusion, both UV and IR must be detected to confirm flame. Logic processed by STM32G0B1RET6. |
| Spectral Range |
ARCIS-U25: UV: 185 nm ~ 260 nm ARCIS-I25 and Series: IR: 4.48 µm ~ 5.0 µm ARCIS-U25 Series: UV: 185 nm ~ 260 nm IR: 4.48 µm ~ 5.0 µm |
| Output Signal |
Relay Outputs: 2x SPDT, 5A @ 230VAC or 5A @ 30VDC Analog Output (DAC + XTR111): 0~20 mA loop |
| Response Time (Sensor) |
Level I: 6–10s (Fast alarm, non-interference) Level II: 15–18s (Reliable, clean environments) Level III: 22–26s (Reliable in interference) Level IV: 3–4s (Demonstration mode) |
| Logic Judgment |
ARCIS-I25 / ARCIS-3I25: Multibeam IR correlation (IR only) ARCIS-U25 Series: OR Logic: Valid flame when both UV and IR signals are active |
| Adjust Method | Magnetic rod-based configuration (no contact required) |
| Detecting Distance | 60 metres at 0.3m × 0.3m flame source (fuel: n-heptane) |
| Operating Environment |
Temperature: −20°C ~ +60°C Humidity: 15% ~ 90% RH (non-condensing) |
| Dimensions |
Sensor: Ø 56 mm × H 21.5 mm System: Approx. 150 mm × 100 mm × 60 mm |
| Electrical Supply |
Input Voltage: 18–30V DC Internal Regulation: 5V and 3.3V Total Power Consumption: < 2.5W |
| Fault Detection & Recovery |
Fault Input: Active LOW Auto Reset: Voltage Regulator Based Control On Fault: Relays disabled, 2 mA analog output |
