APPROVALS :
- Tested for Intrinsically safe as per IS 5780-2002{IEC-60079-11(1999)}
- Tested for Performance as per IS 9000 (ERTL WEST)
- Tested by CENTRAL INSTITUTE OF MINING & FUEL REASERCH LAB.(CMRI)
- Approved for EEx ia IIC T4/T6
- BIS Certificate No: - CM / L – 7449687 as per IS: 5780
- CCE Approval No: -A/P/HQ/MH/104/518(P55545)

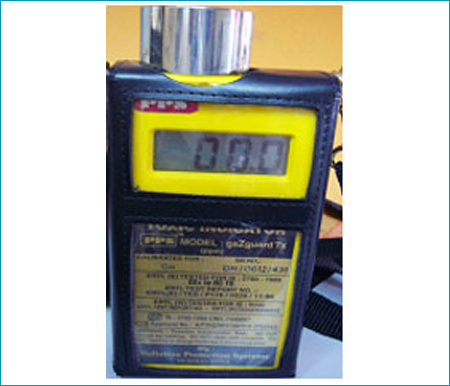

PPS make Portable Sulphur Dioxide Detector (SO)
Dimension | : | 130mm x 67mm (4.5” x 2.6” x 1.6”) |
Weight | : | 450 gms. (With Batteries) |
Accessories | : | Standard: - Carring Case Batt. Charger Optional: - Aspirator adaptor |
Measurement Range | : | 0 – 100 ppm |
Display | : | Liquid Crystal Display (LCD) |
Standard Alarm Levels | : | At TLV |
Optional Alarm Levels | : | As per specification |
Alarm Indication | : | Pulsating / Continuous red LED with audible, 90 db at 1 Meter |
Battery | : | Standard : Rechargeable 4 x AA cells Optional :Disposable |
Battery Life | : | 12 – 15 hrs. Continuous |
Oper. Temperature | : | -10 deg C to 50 deg C. (14 deg F to 122 deg F) |
Accuracy | : | +/- 10 of Test Gas Concentration |
Humidity | : | 0 – 95% RH Non - Condensing |
Accuracy | : | +/- 10 of Test Gas Concentration |
Resolution | : | 0.01ppm |
Response Time | : | T90 < 40 Sec. |
Setting | : | Zero/ Span accessible from outside |
Sensor Type | : | Electrochemical |
Sensor Life | : | Max. 2 to 3 years (in fresh air) |
