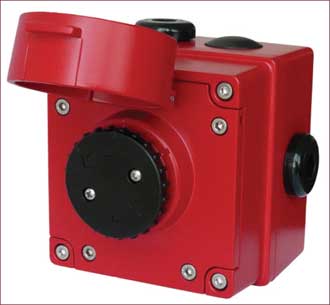

BExCP3A/B-PB Push Button Call Point

The BExCP3A-PB and BExCP3B-PB push button manual call points are
approved for Zone 1, 2, 21 and 22 hazardous areas for the control of fire
and gas alarm systems. Available with and without monitoring resistors
all versions are certified to ATEX and IECEx standards.

The push button mechanism is protected by a spring loaded cover therefore the switch requires a two-action activation.
The product is user resettable by rotating the push button.

The BEx range features enclosures manufactured from corrosion proof, marine grade, copper free LM6 (A413) aluminium which is phosphated and powder coated.

Options:
• Alternative housing colours are available to meet specific requirements.
• DIN rail mounted terminal blocks: 8 x 2.5mm²
• Metalised Polyester “Duty” label.
• Series and/or End of Line resistors.

Approvals:
• ATEX certificate: Sira 09ATEX3286X,
IEC 60079-0:2007 Ed 5, EN 60079-1:2004,
EN 60079-7:2007, IEC 60079-18:2009 Ed 3,
EN 61241-1:2004

• IECEx certificate: IECEx SIR 09.0121X,
IEC 60079-0:2007-10 Edition: 5,
IEC 60079-1:2003 Edition: 5,
IEC 60079-18:2009 Edition: 3,
IEC 60079-7:2006-07 Edition: 4,
IEC 61241-1:2004 Edition: 1

• Inmetro certificate: 10-IEx-0011X
